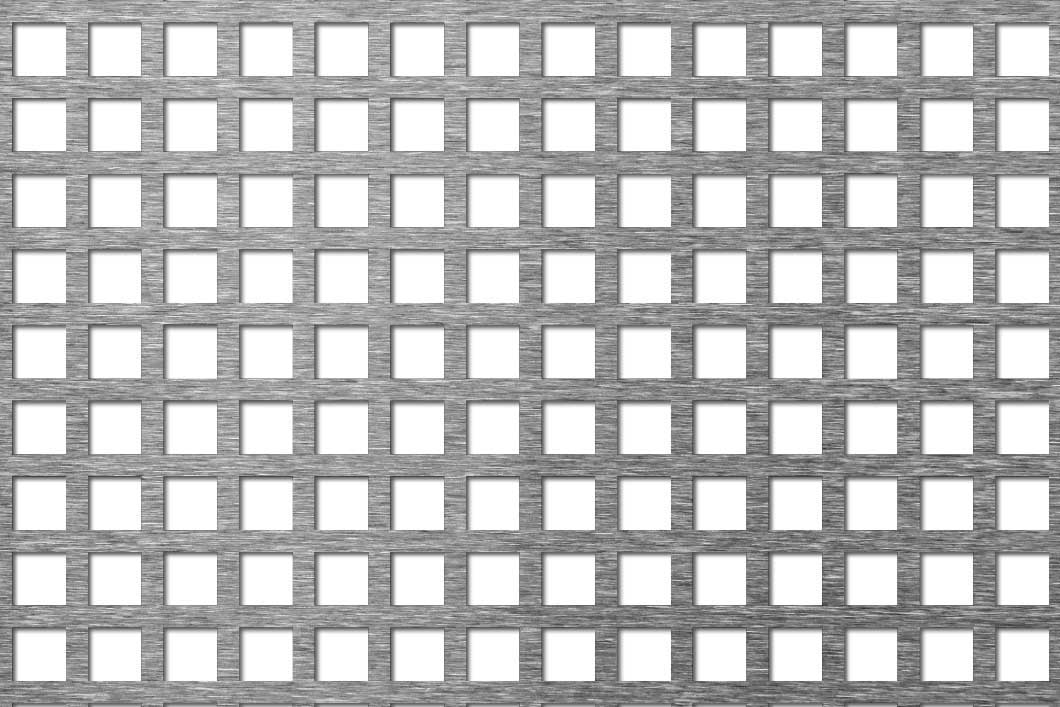

C9.5 U13.33 perforated sheet: 9.5mm square holes on 13.33mm in-line pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

9.5mm Square Hole Pre-Galvanised Steel Perforated Sheet (C9.5 U13.33)

Perforated sheetPre-galvanisedKenton code K146G

9.5mmSquare hole
13.33mmIn-line pitch
51%Open area
1–1.5mmThickness

Stock and sheet sizes

Pre-galvanisedK146G 2000 x 1000 kg/m²
1.0mm 5-7 days 3.9
1.5mm 5-7 days 5.8

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

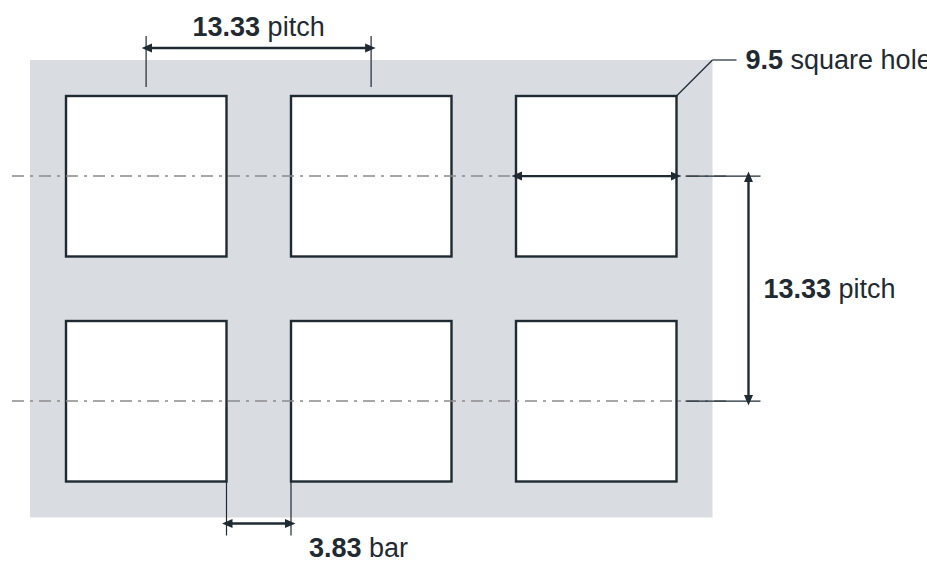

C9.5 U13.33 hole layout: 9.5mm square holes, 13.33mm in-line pitch, 3.83mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
9.5mm square
Pitch
13.33mm in-line
Bar between holes
3.83mm
Open area
51%
Holes per m²
5,630
Thickness
1–1.5mm
Material
Pre-galvanised
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C9.5 U13.33 pre-galvanised steel perforated sheet

C9.5 U13.33 is a 9.5mm square hole perforated sheet in pre-galvanised steel, with the holes on a 13.33mm in-line pitch giving 51% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 1.5mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C9.5 U13.33 mean?

C9.5 is a 9.5mm square hole. U13.33 means the holes sit on a 13.33mm in-line pitch, measured centre to centre.

This pattern also comes in

Mild steel

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C8 U10 8mm square 10mm in-line 64% 1–1.5mm ✓ In stock
C8 U12 8mm square 12mm in-line 44% 1–2mm ✓ In stock
C9.2 U34 9.2mm square 34mm in-line 7% 1–2mm 5-7 days
C9.5 U13.33This page 9.5mm square 13.33mm in-line 51% 1–1.5mm 5-7 days
C10 U12 10mm square 12mm in-line 69% 1–1.5mm ✓ In stock
C10 U14 10mm square 14mm in-line 51% 2mm ✓ In stock
C10 U15 10mm square 15mm in-line 44% 1–2mm ✓ In stock

The nearest pre-galvanised steel square hole patterns to C9.5 U13.33. See every pre-galvanised steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
