8 x 6mm Aluminium Expanded Metal, 1mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
8 x 6mm aluminium expanded metal, 1mm strandExpanded metal diamond: 8mm LWD, 6mm SWD, 1mm strand

8 x 6mm. 8 x 6mm diamond (LWD x SWD), 1mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 8 x 6mm aluminium expanded metal, 1mm strand
8 x 6mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, aluminium, 8 x 6mm. 8 x 6mm

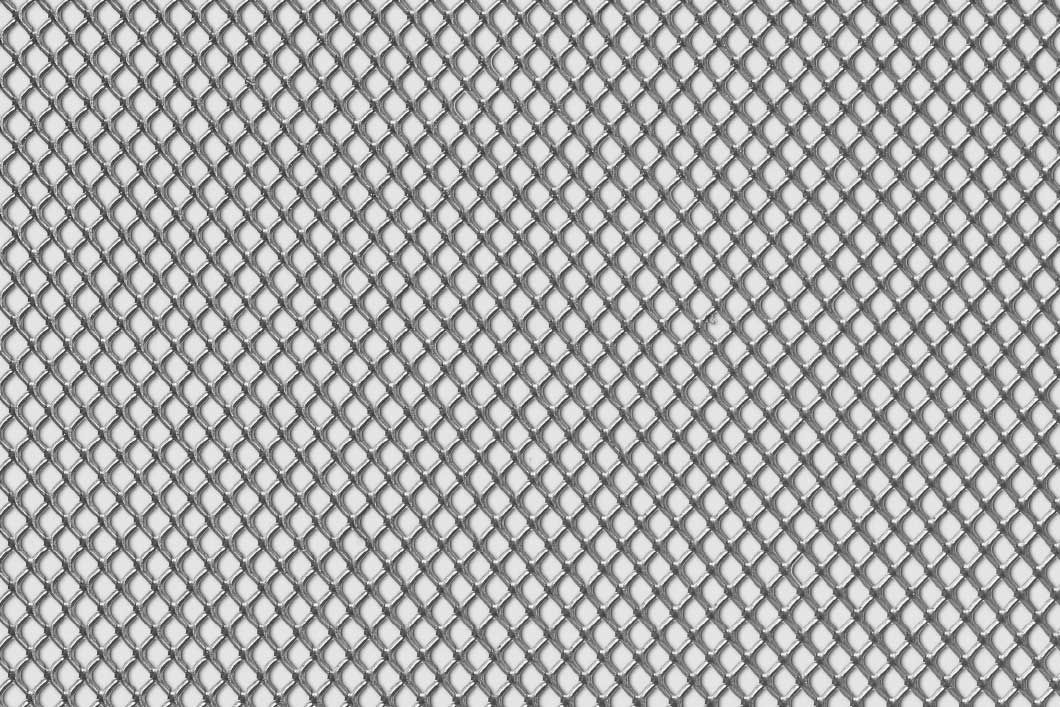

8 x 6mm aluminium expanded metal, 1mm strand

Expanded aluminium with a 8 x 6mm diamond and 1mm strands, giving 67% open area. It’s made to order in approximately 5 to 7 days, in 1mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 8 x 6mm
Long way of diamond (LWD)8mm
Short way of diamond (SWD)6mm
Strand width1mm
Open area67%
Thickness1mm
MaterialAluminium
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessAluminium, Made to orderSheet size (mm)
Any standard size
1mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

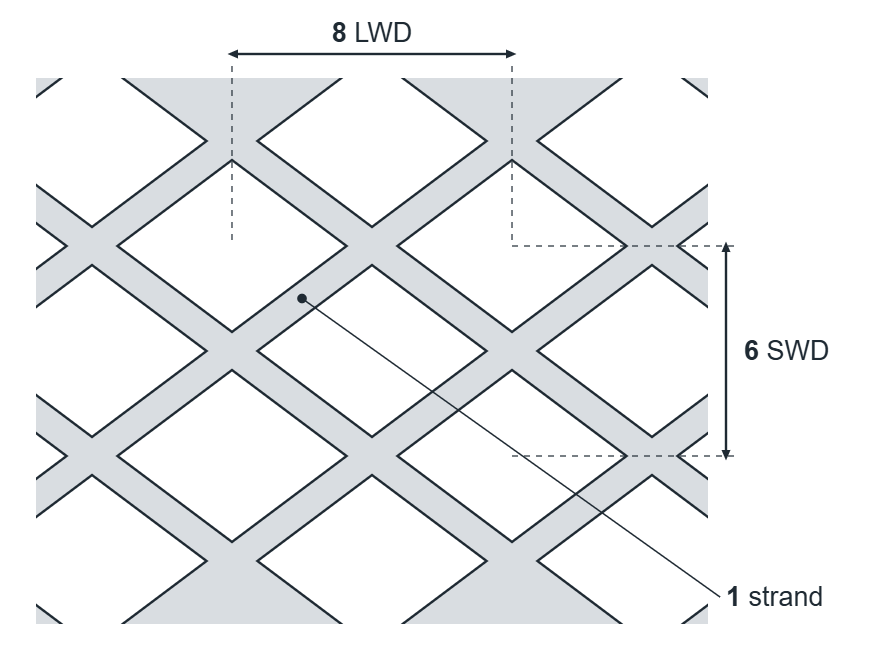

Diamond pattern

Expanded metal diamond: 8mm LWD, 6mm SWD, 1mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 8 x 6mm

Expanded aluminium with a 8 x 6mm diamond and 1mm strands, giving 67% open area. It’s made to order in approximately 5 to 7 days, in 1mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Also comes in

Mild steel

Not quite right? Compare similar sizes

Anything different from 8 x 6mm is marked. See every expanded aluminium sheet, or work out a different size

MeshDiamondStrandThicknessStock
1010AF6.9 x 3.6mm1.27mm0.89mm✓ In stock
8 x 48 x 4mm1mm1mm5 to 7 days
YOU’RE VIEWING8 x 68 x 6mm1mm1mm5 to 7 days
10 x 610 x 6mm1mm1mm5 to 7 days
12 x 612 x 6mm2mm1–2mm5 to 7 days
1610AF14 x 4.8mm1.8mm0.89mm✓ In stock
16 x 816 x 8mm1.5mm1–1.5mm5 to 7 days

Highlighted where it differs from 8 x 6mm
