1.5mm Hole 316 Stainless Steel Perforated Sheet (R1.5 T2.5)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
1.5mm hole 316 stainless steel perforated sheetR1.5 T2.5 hole layout: 1.5mm round holes, 2.5mm staggered pitch, 1mm bar, 2.17mm row spacing

R1.5 T2.5. 1.5mm round hole, 2.5mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K005S6
R1.5 T2.5 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K005S6 for easy re-ordering.Download spec sheet PDF

Perforated sheet, stainless 316, r1.5 t2.5. Kenton code K005S6

1.5mm hole 316 stainless steel perforated sheet

R1.5 T2.5 is a 1.5mm round hole perforated sheet in 316 stainless steel, with the holes on a 2.5mm staggered pitch giving 33% open area. We keep it in stock, in 1mm thickness.

In stock, next working day delivery
Product specificationThe measurements of R1.5 T2.5
Hole1.5mm round
Pitch2.5mm staggered 60°
Row spacing2.17mm
Bar between holes1mm
Open area33%
Holes per m²185,000
Thickness1mm
MaterialStainless 316

Also written: R1.5T2.5 · 1.5mm R1.5 · 1.5mm hole 2.5mm pitch · 1.5mm round hole on 2.5mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessStainless 316, K005S6Sheet size (mm)Weightkg/m²
2000 x 1000
1.0mm✓ In stock5.4

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

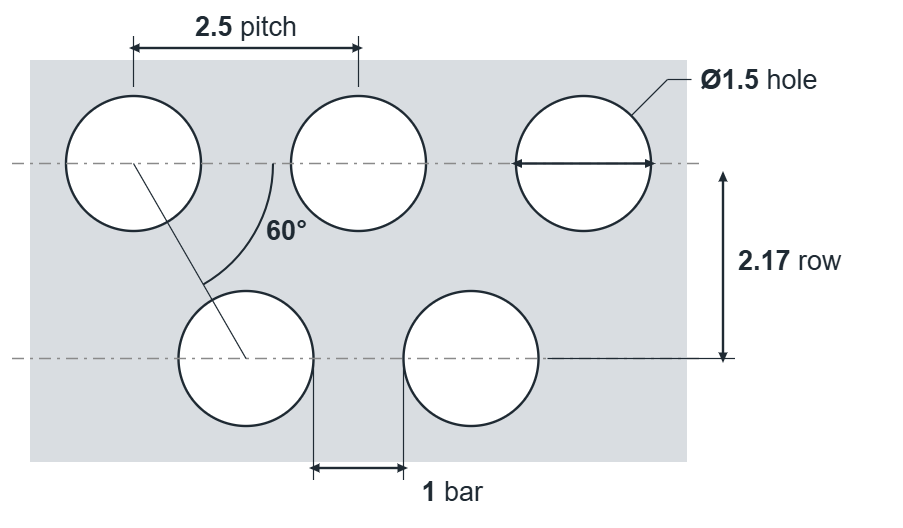

Hole layout

R1.5 T2.5 hole layout: 1.5mm round holes, 2.5mm staggered pitch, 1mm bar, 2.17mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R1.5 T2.5

R1.5 T2.5 is a 1.5mm round hole perforated sheet in 316 stainless steel, with the holes on a 2.5mm staggered pitch giving 33% open area. We keep it in stock, in 1mm thickness.

In stock: 1mm in 2m x 1m sheets. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R1.5 T2.5 mean?

R1.5 is a 1.5mm round hole. T2.5 means the holes sit on a 2.5mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R1.5 T2.5 is marked. See every 316 stainless steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R1.1 T21.1mm round2mm staggered27%0.8mm✓ In stock
YOU’RE VIEWINGR1.5 T2.51.5mm round2.5mm staggered33%1mm✓ In stock
R2 T32mm round3mm staggered40%1.5mm5 to 7 days
R2 T3.52mm round3.5mm staggered30%1–1.5mm✓ In stock
R3 T53mm round5mm staggered33%0.7–2mm✓ In stock
R3 T63mm round6mm staggered23%3mm✓ In stock
R3 T73mm round7mm staggered17%1–2mm5 to 7 days
R4 T64mm round6mm staggered40%1–2mm✓ In stock
R5 T85mm round8mm staggered35%1–3mm✓ In stock

Highlighted where it differs from R1.5 T2.5
