15mm Hole Mild Steel Perforated Sheet (R15 T22)
Description


R15 T22. 15mm round hole, 22mm staggered pitch.

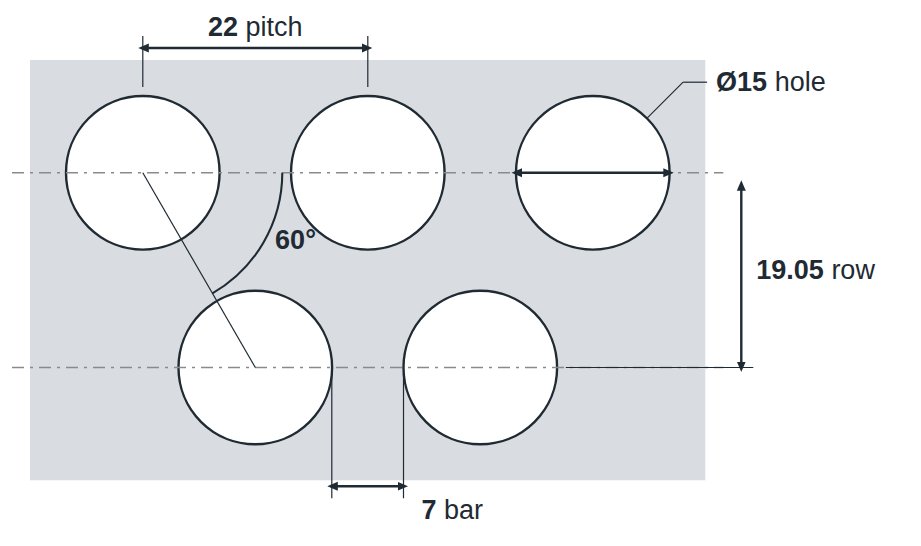

Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, mild steel, r15 t22. Kenton code K204M

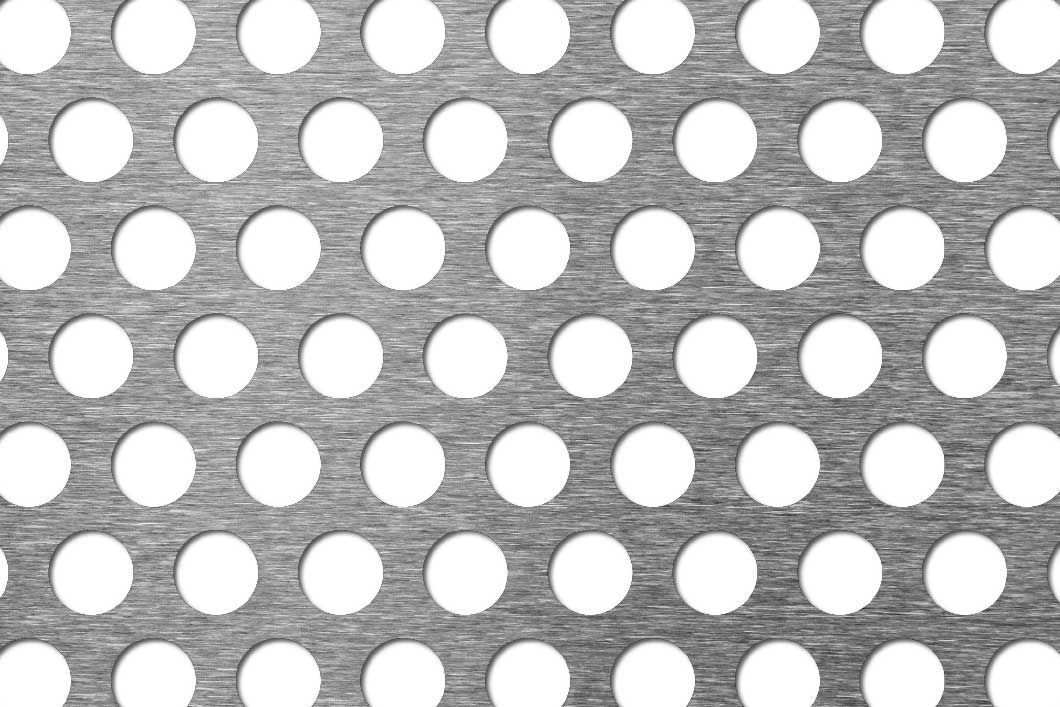

15mm hole mild steel perforated sheet
R15 T22 is a 15mm round hole perforated sheet in mild steel, with the holes on a 22mm staggered pitch giving 42% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 3mm.
Also written: R15T22 · 15mm R15 · 15mm hole 22mm pitch · 15mm round hole on 22mm staggered centres
| ThicknessMild steel, K204M | Sheet size (mm) | Weightkg/m² | |
|---|---|---|---|
| 2000 x 1000 | 3000 x 1500 | ||
| 1.5mm | 5 to 7 days | 6.8 | |
| 2.0mm | 5 to 7 days | 5 to 7 days | 9.1 |
| 3.0mm | 5 to 7 days | 13.6 | |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout

Enlarged, not to scale. Dimensions in mm.
About R15 T22
R15 T22 is a 15mm round hole perforated sheet in mild steel, with the holes on a 22mm staggered pitch giving 42% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 3mm.
All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R15 T22 mean?
R15 is a 15mm round hole. T22 means the holes sit on a 22mm staggered (60°) pitch, measured centre to centre.
Not quite right? Compare similar patterns
Anything different from R15 T22 is marked. See every mild steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R12 T16 | 12mm round | 16mm staggered | 51% | 1–6mm | ✓ In stock |
| R12 T20 | 12mm round | 20mm staggered | 33% | 1–10mm | ✓ In stock |
| R15 T21 | 15mm round | 21mm staggered | 46% | 1–4mm | ✓ In stock |
| YOU’RE VIEWINGR15 T22 | 15mm round | 22mm staggered | 42% | 1.5–3mm | 5 to 7 days |
| R15 T24 | 15mm round | 24mm staggered | 35% | 6–8mm | ✓ In stock |
| R16 T20 | 16mm round | 20mm staggered | 58% | 1–1.5mm | 5 to 7 days |
| R18 T22 | 18mm round | 22mm staggered | 61% | 1–2mm | 5 to 7 days |
Highlighted where it differs from R15 T22
