R4 T5.6 perforated sheet: 4mm round holes on 5.6mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

4mm Hole 304 Stainless Steel Perforated Sheet (R4 T5.6)

Perforated sheetStainless 304Kenton code K096S

4mmRound hole
5.6mmStaggered pitch
46%Open area
1mmThickness

Stock and sheet sizes

Stainless 304K096S 2000 x 1000 kg/m²
1.0mm 5-7 days 4.3

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

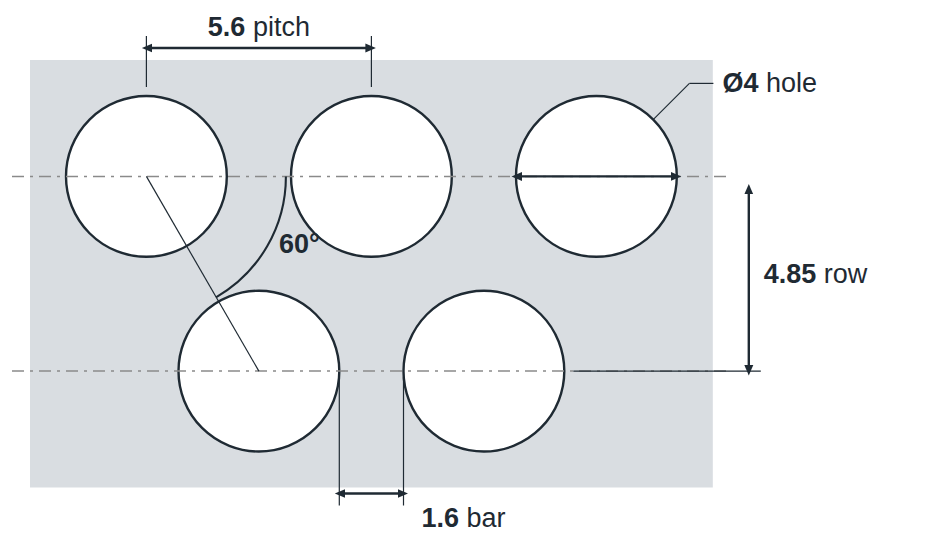

R4 T5.6 hole layout: 4mm round holes, 5.6mm staggered pitch, 1.6mm bar, 4.85mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
4mm round
Pitch
5.6mm staggered 60°
Row spacing
4.85mm
Bar between holes
1.6mm
Open area
46%
Holes per m²
36,800
Thickness
1mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

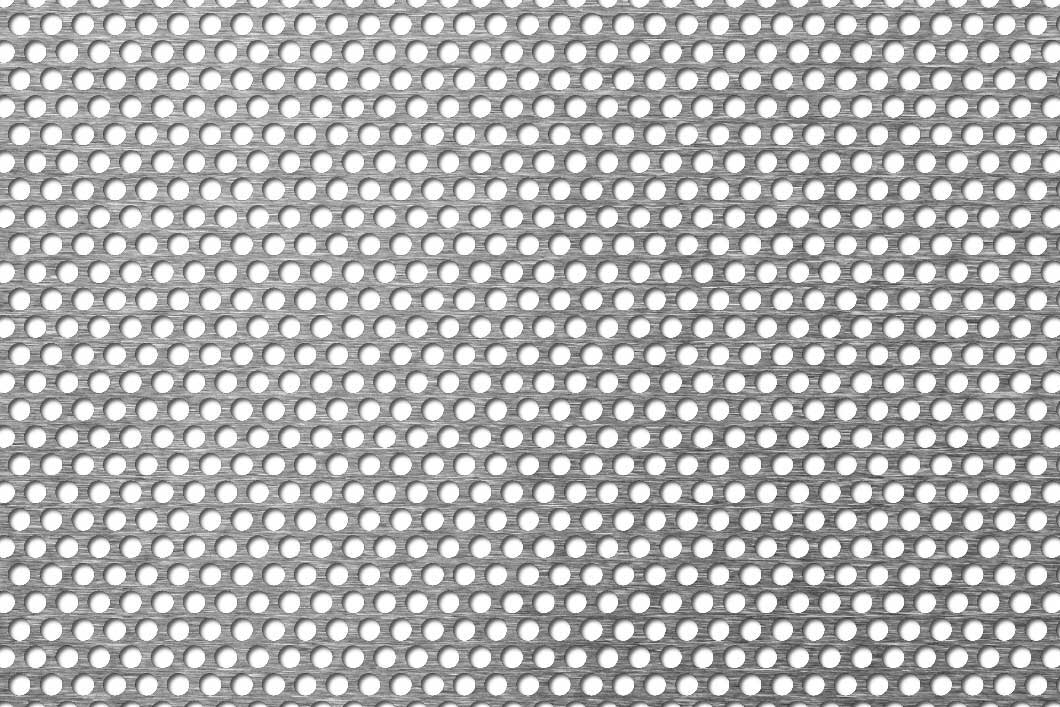

About R4 T5.6 304 stainless steel perforated sheet

R4 T5.6 is a 4mm round hole perforated sheet in 304 stainless steel, with the holes on a 5.6mm staggered pitch giving 46% open area. It’s made to order, usually in 5-7 days, in 1mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R4 T5.6 mean?

R4 is a 4mm round hole. T5.6 means the holes sit on a 5.6mm staggered (60°) pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R3 T4 3mm round 4mm staggered 51% 1mm ✓ In stock
R4 T5.6This page 4mm round 5.6mm staggered 46% 1mm 5-7 days
R4 T6 4mm round 6mm staggered 40% 1–2mm ✓ In stock
R4 T7 4mm round 7mm staggered 30% 1–3mm 5-7 days
R5 T7 5mm round 7mm staggered 46% 1–2mm ✓ In stock
R5 T7.5 5mm round 7.5mm staggered 40% 1.5mm 5-7 days
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R4 T5.6. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
