10mm Hole Pre-Galvanised Steel Perforated Sheet (R10 U25.98)
Perforated sheetPre-galvanisedKenton code K465G
Stock and sheet sizes
| Pre-galvanisedK465G | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | 5-7 days | 5-7 days | 5-7 days | 6.9 |
| 1.5mm | 5-7 days | 5-7 days | 5-7 days | 10.4 |
| 2.0mm | 5-7 days | 5-7 days | 5-7 days | 13.9 |
| 3.0mm | 5-7 days | 20.8 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

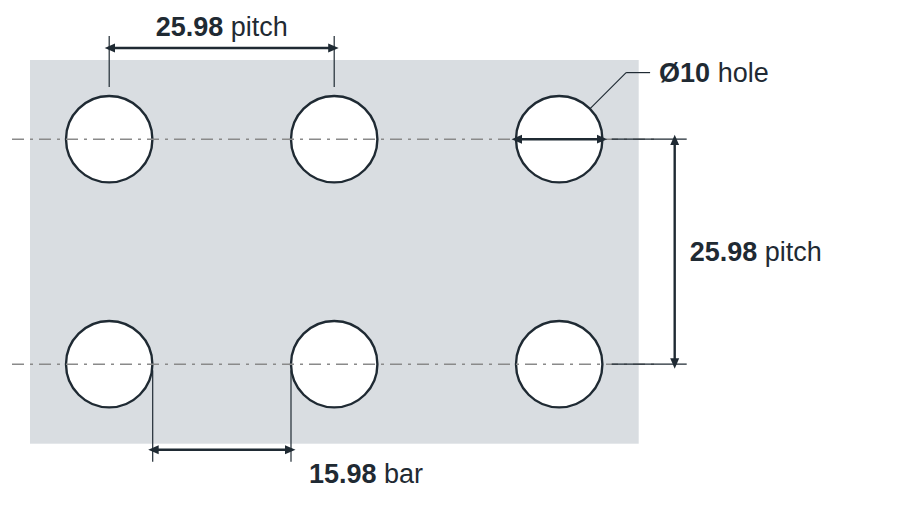

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 10mm round
- Pitch
- 25.98mm square
- Bar between holes
- 15.98mm
- Open area
- 12%
- Holes per m²
- 1,480
- Thickness
- 1–3mm
- Material
- Pre-galvanised
About R10 U25.98 pre-galvanised steel perforated sheet
R10 U25.98 is a 10mm round hole perforated sheet in pre-galvanised steel, with the holes on a 25.98mm square pitch giving 12% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
All sizes in the table are made to order, usually in 5-7 days.
What does R10 U25.98 mean?
R10 is a 10mm round hole. U25.98 means the holes sit on a 25.98mm square (in-line) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R8 U17.32 | 8mm round | 17.32mm square | 17% | 1–3mm | 5-7 days |
| R10 U15 | 10mm round | 15mm square | 35% | 1–3mm | 5-7 days |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–3mm | ✓ In stock |
| R10 T18 | 10mm round | 18mm staggered | 28% | 1–2mm | 5-7 days |
| R10 U21 | 10mm round | 21mm square | 18% | 2mm | ✓ In stock |
| R10 U25.98This page | 10mm round | 25.98mm square | 12% | 1–3mm | 5-7 days |
| R12 U27.72 | 12mm round | 27.72mm square | 15% | 1–3mm | 5-7 days |
The nearest pre-galvanised steel round hole patterns to R10 U25.98. See every pre-galvanised steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
