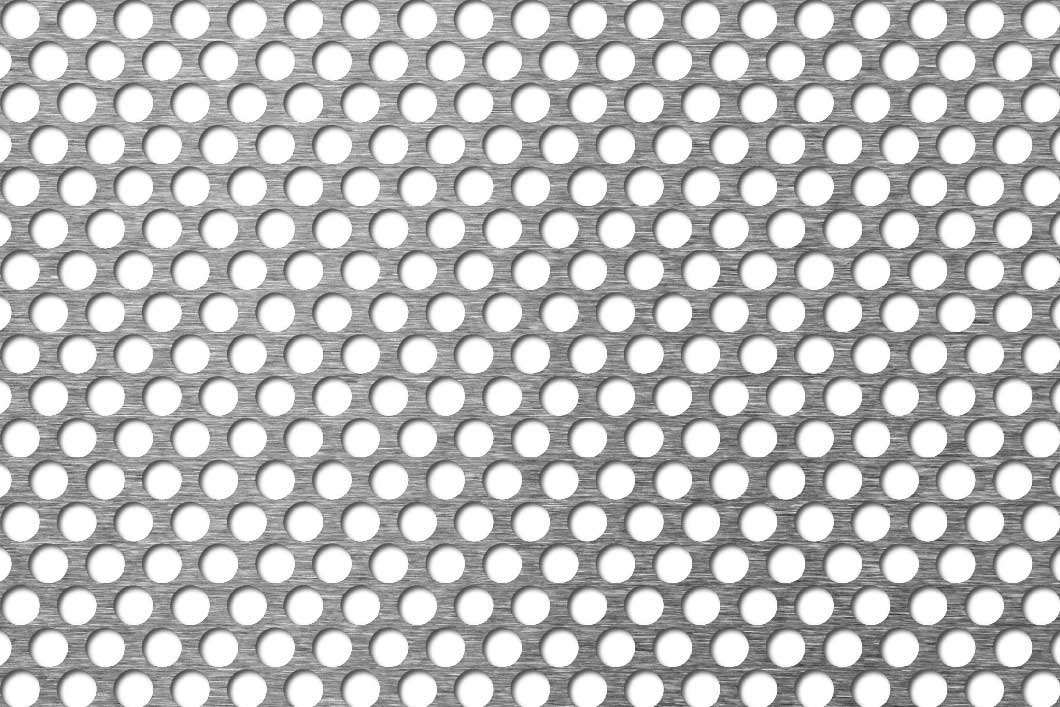

R7 T10 perforated sheet: 7mm round holes on 10mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

7mm Hole 304 Stainless Steel Perforated Sheet (R7 T10)

Perforated sheetStainless 304Kenton code K053S

7mmRound hole
10mmStaggered pitch
44%Open area
1–1.5mmThickness

Stock and sheet sizes

Stainless 304K053S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 4.4
1.5mm 5-7 days 5-7 days 5-7 days 6.7

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

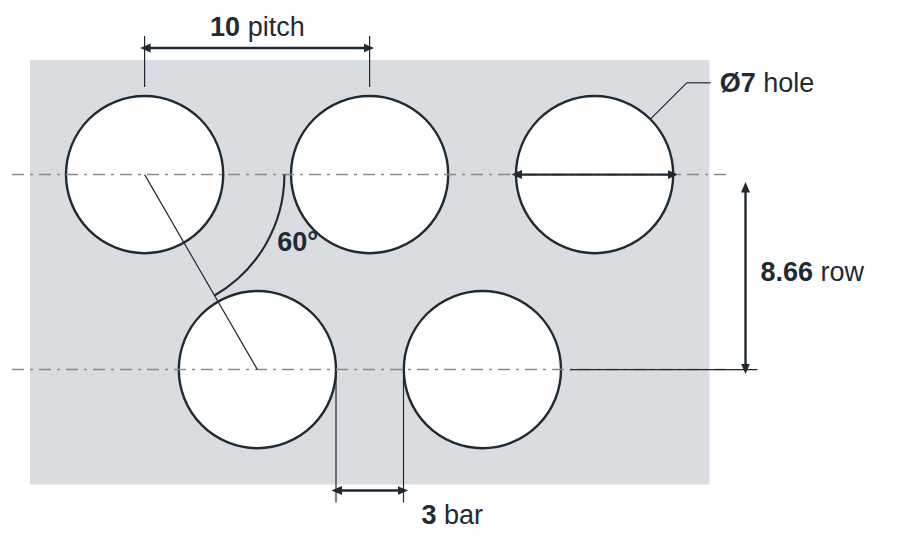

R7 T10 hole layout: 7mm round holes, 10mm staggered pitch, 3mm bar, 8.66mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
7mm round
Pitch
10mm staggered 60°
Row spacing
8.66mm
Bar between holes
3mm
Open area
44%
Holes per m²
11,500
Thickness
1–1.5mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R7 T10 304 stainless steel perforated sheet

R7 T10 is a 7mm round hole perforated sheet in 304 stainless steel, with the holes on a 10mm staggered pitch giving 44% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 1.5mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R7 T10 mean?

R7 is a 7mm round hole. T10 means the holes sit on a 10mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steel

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R5 T7 5mm round 7mm staggered 46% 1–2mm ✓ In stock
R6 T8 6mm round 8mm staggered 51% 1–2mm ✓ In stock
R6 T9 6mm round 9mm staggered 40% 1–3mm ✓ In stock
R7 T10This page 7mm round 10mm staggered 44% 1–1.5mm 5-7 days
R8 T10 8mm round 10mm staggered 58% 1–2mm 5-7 days
R8 T11 8mm round 11mm staggered 48% 1–2mm ✓ In stock
R8 T12 8mm round 12mm staggered 40% 1–3mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R7 T10. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
