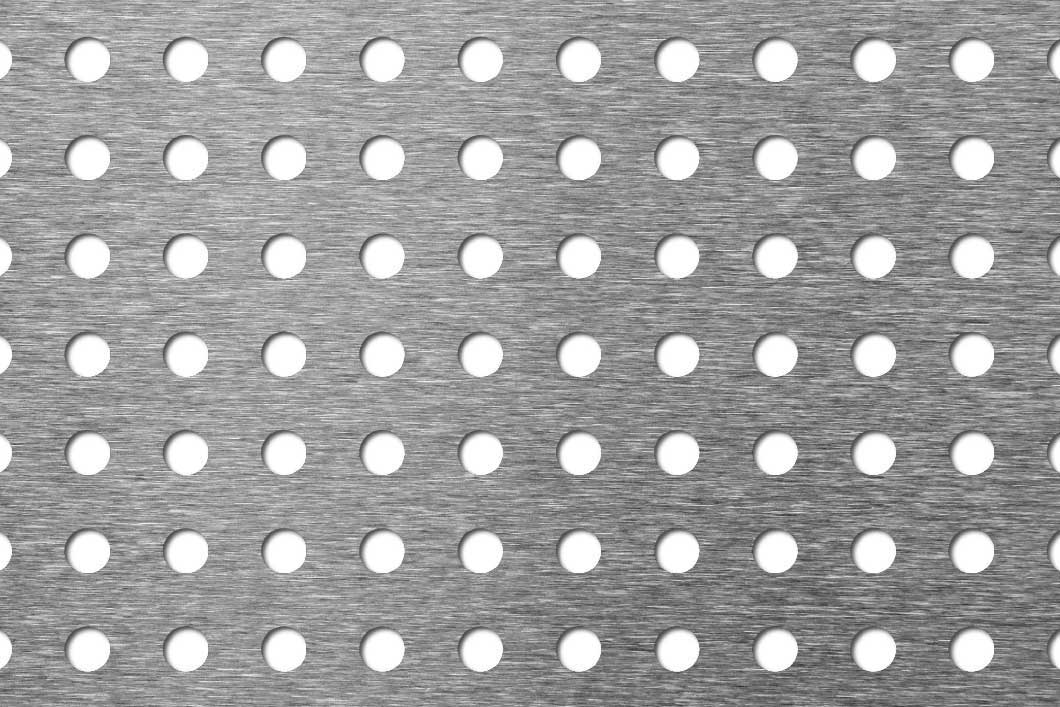

R8 U17.32 perforated sheet: 8mm round holes on 17.32mm square pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

8mm Hole 304 Stainless Steel Perforated Sheet (R8 U17.32)

Perforated sheetStainless 304Kenton code K460S

8mmRound hole
17.32mmSquare pitch
17%Open area
1–3mmThickness

Stock and sheet sizes

Stainless 304K460S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 6.7
1.5mm 5-7 days 5-7 days 5-7 days 10.0
2.0mm 5-7 days 5-7 days 5-7 days 13.3
3.0mm 5-7 days 20.0

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

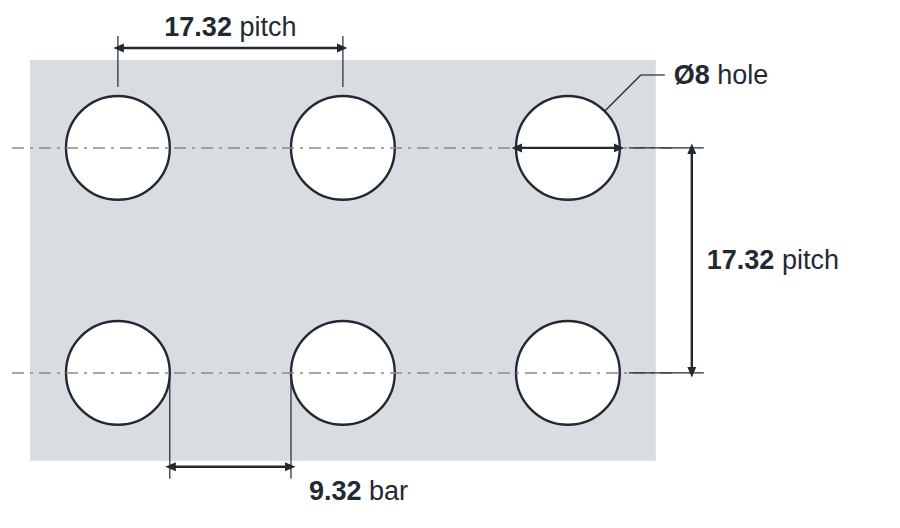

R8 U17.32 hole layout: 8mm round holes, 17.32mm square pitch, 9.32mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
8mm round
Pitch
17.32mm square
Bar between holes
9.32mm
Open area
17%
Holes per m²
3,330
Thickness
1–3mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R8 U17.32 304 stainless steel perforated sheet

R8 U17.32 is an 8mm round hole perforated sheet in 304 stainless steel, with the holes on a 17.32mm square pitch giving 17% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R8 U17.32 mean?

R8 is an 8mm round hole. U17.32 means the holes sit on a 17.32mm square (in-line) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R8 T10 8mm round 10mm staggered 58% 1–2mm 5-7 days
R8 T11 8mm round 11mm staggered 48% 1–2mm ✓ In stock
R8 T12 8mm round 12mm staggered 40% 1–3mm ✓ In stock
R8 U17.32This page 8mm round 17.32mm square 17% 1–3mm 5-7 days
R10 U15 10mm round 15mm square 35% 1–3mm 5-7 days
R10 U26 10mm round 26mm square 12% 1–3mm ✓ In stock
R12 U27.72 12mm round 27.72mm square 15% 1–3mm 5-7 days

The nearest 304 stainless steel round hole patterns to R8 U17.32. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
